LT920TE is electric telescopic loader based on a 62.98 kWh lithium iron phosphate battery and dual permanent magnet synchronous motors, achieving true zero-emission, low-noise indoor and outdoor operations. With a compact body, small turning radius, and panoramic cab, it can flexibly shuttle in narrow spaces. With a variety of optional international charging interfaces, it is suitable for global use and is an ideal choice for green construction, such as construction, warehousing, and agriculture.
Người mẫu :
LT920TETrọng lượng vận hành :
5580kgDung tích thùng :
1m³ODM/OEM :
Support

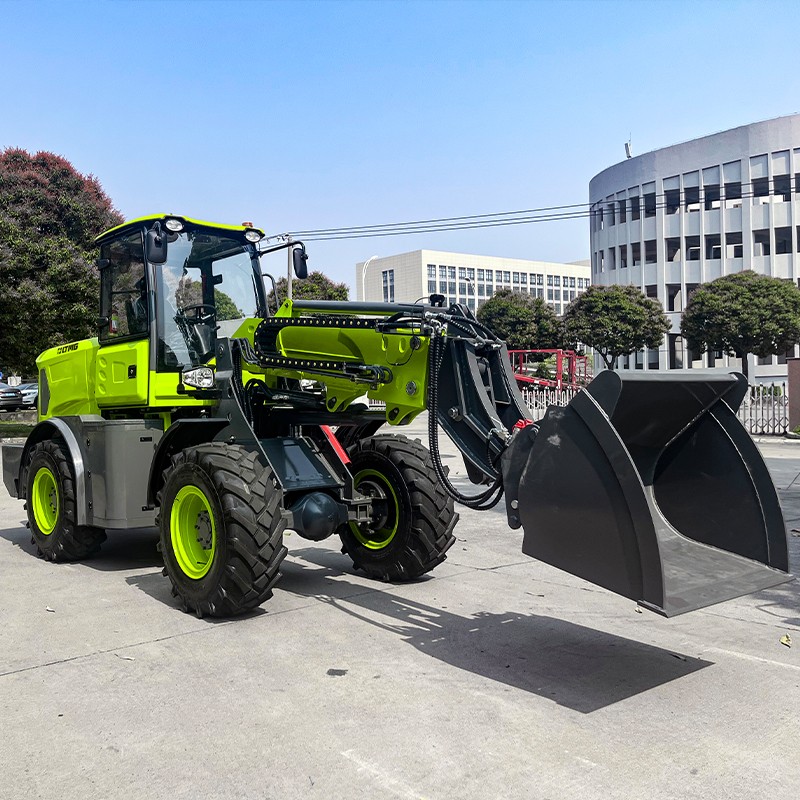

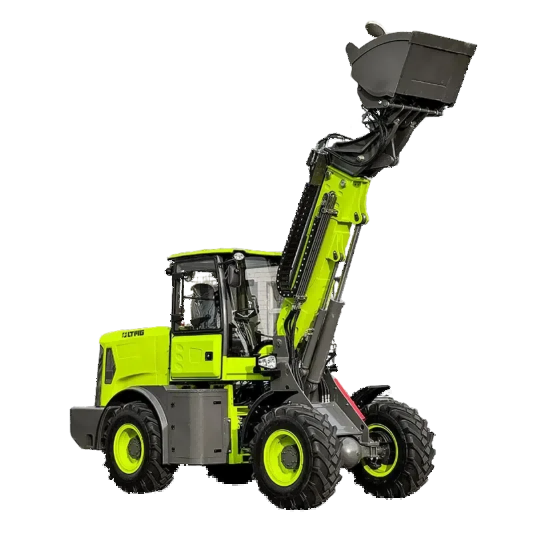

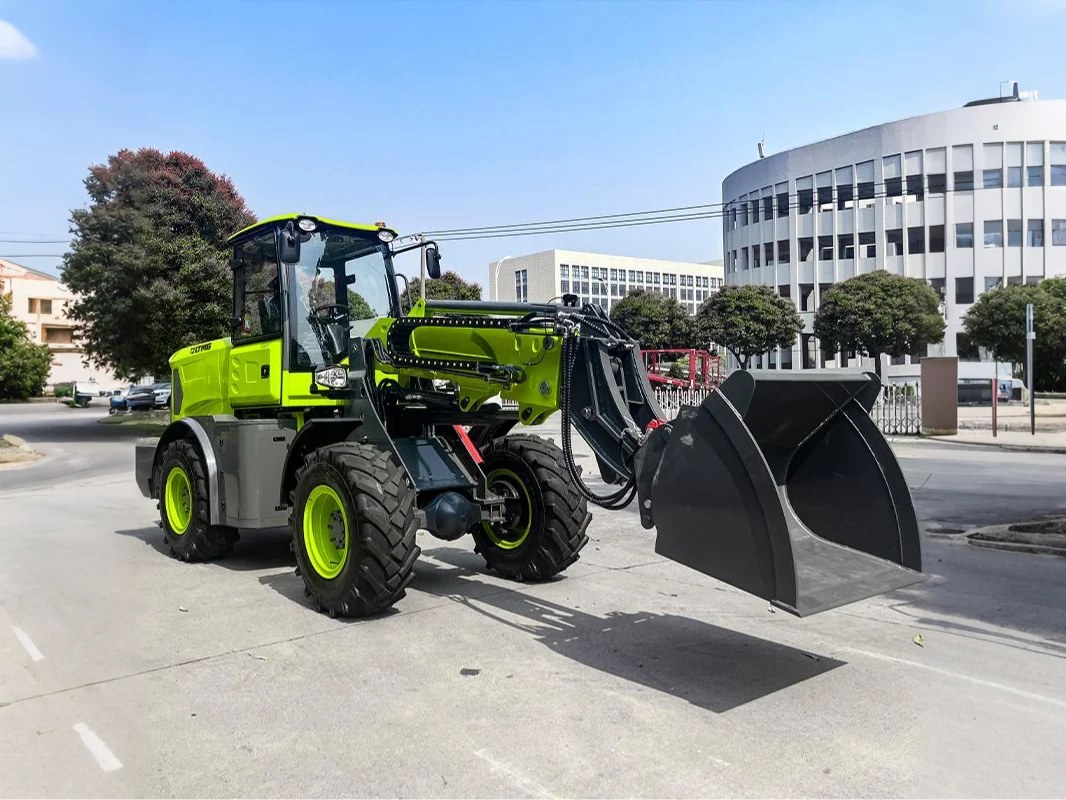

2 Ton High-Efficiency Electric Telescopic Loader
* No manual readjustment is required during the whole process; lifting-loading-positioning is done in one step without loss of load.
* The maximum driving speed is 22 km/h, and the long endurance can meet the needs of all-day operation.
* The cab is spacious and orderly, with a height-adjustable color LCD screen, and all information is visible.
* The large digital color screen: speed, power, working time, function settings, and submenus are visible
* Large area glass + gull-wing hood + optional reversing camera, the rear is clear at a glance.
* Dual high-power permanent magnet synchronous motors (drive + hydraulic independent decoupling), no gearbox, stepless speed regulation.
LT920TE High-Efficiency Electric Telescopic Loader Technical Parameters
|
Item |
Parameter / Description |
|
Emission Level |
Zero Emission |
|
Drive System |
Electric direct drive (no gearbox) |
|
Working Equipment Type |
Telescopic Boom |
|
Drive Motor Type |
Permanent Magnet Synchronous Motor (PMSM) |
|
Drive Motor Power |
65 kW |
|
Bucket Capacity |
1.00 m³ |
|
Operating Weight |
5,580 kg |
|
Control Mode |
Pedal for stepless traction & speed; lever buttons for F/R |
|
Travel Speed |
0–20 km/h |
|
Service Brake System |
Hydraulic proportional brake + electric energy recuperation |
|
Parking Brake System |
Disc brake |
|
Rated Load |
2,000 kg |
|
Bucket Breakout Force |
5,800 kg |
|
Battery Type |
Lithium Iron Phosphate (LiFePO₄) |
|
Battery Voltage |
386.4 V |
|
Battery Capacity |
62.98 kWh (optional) |
|
Operating Time per Charge |
8–10 h |
|
Charging Connector |
DC fast charge |
|
Charging Time |
1–2 h |
|
Hydraulic Motor Type |
Permanent Magnet Synchronous Motor (PMSM) |
|
Hydraulic Motor Power |
30 kW |
|
Hydraulic Flow |
105 L/min |
|
Hydraulic Rated Pressure |
160 bar / 180 bar |
|
Steering System |
Load-sensing |
|
Tire Size |
16/70-20 |
With technological innovation, our product configuration and parameters will continue to change without notice.
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ
Q: What parameters should you focus on when purchasing a 2-ton electric telescopic arm loader?
A: The core parameters include: battery capacity (affects battery life, commonly 50-100kWh, battery life 4-8 hours), maximum extension length of the telescopic arm (determines the operating range, generally 3-5 meters), charging time (fast charging about 1-2 hours, slow charging 6-8 hours), maximum lifting height, walking speed (usually ≤15km/h) and after-sales service network coverage.
Q: What does daily maintenance mainly include?
A: Daily inspection: whether the battery connection cable is loose, hydraulic oil level, tire wear; weekly maintenance: clean the dust on the battery surface, lubricate the telescopic arm pin, and check the bucket fixing bolts; monthly maintenance: calibrate the battery management system (BMS) and test the sealing of the hydraulic system.
Q: How Can I Trust Your Company?
A: With 20 years of experience, we can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third-party evaluation.
Q: Can we be your agent?
A: Of course, LTMG is looking for agents around the world. If you are interested in working with us, please contact us directly.
Q: What Are The Payment Terms For Your Order?
A: We require a 30% deposit upon confirmation and the remaining 70% before dispatch. We are also open to accepting 100% Irrevocable Demand Letters of Credit, as long as they adhere to our mutually agreed-upon terms. We strive to make the payment process as smooth and convenient as possible for our valued customers.
