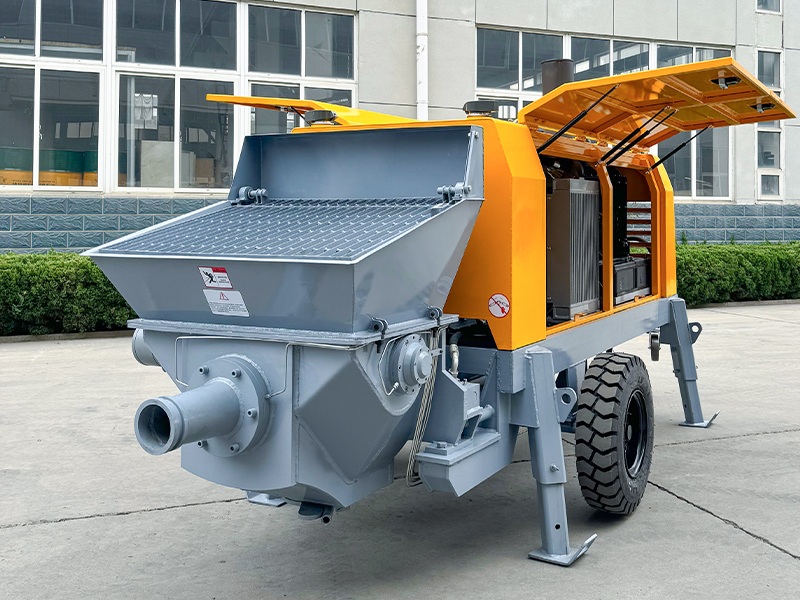

The HBT40-13-60 concrete pump combines 42 m³/h maximum output, 13 MPa pumping pressure, and up to 550 m horizontal delivery. Its S-valve, wireless remote control, automatic lubrication, wear-resistant components, and air-cooled hydraulic system ensure durable, efficient performance for high-rise, bridge, tunnel, and long-distance concrete conveying.
Người mẫu :
HBT40-13-60Maximum theoretical concrete output (L./H.) :
42/23 m³/hMaximum concrete pumping pressure (H. /L.) :
13/6.3 MPa

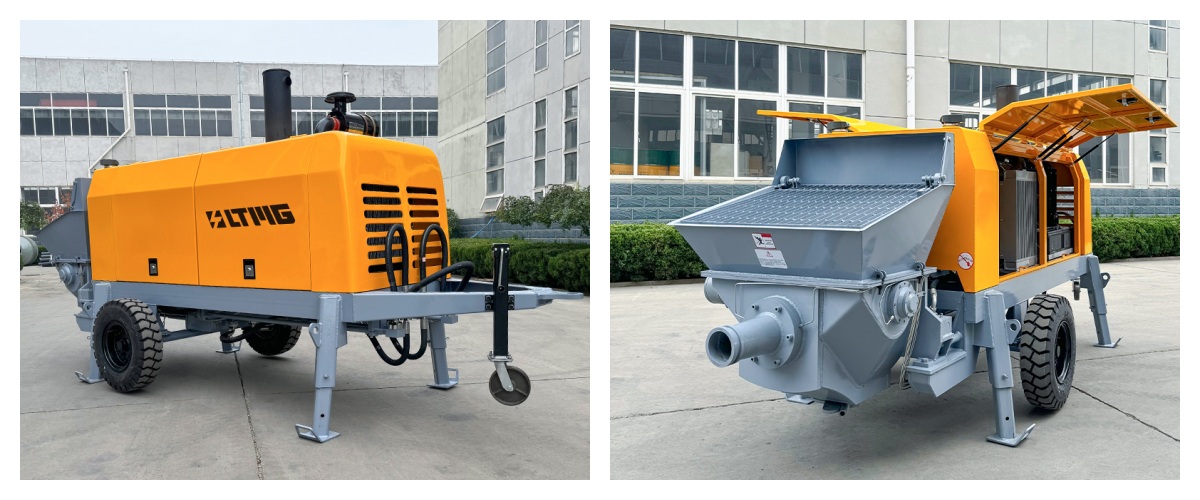

The Features Of The Concrete Pump
1. Intelligent Electronic Control System: Automatically adjusts the diesel engine speed to ensure smooth operation while improving fuel efficiency.
2. Advanced S-Tube Valve Structure: Uses an S-tube valve with a floating seal that automatically compensates for gap wear, delivering excellent sealing performance.
3. Wear-Resistant Key Components: The spectacle plate and cutting ring are made from high-hardness, wear-resistant alloy materials, helping extend their service life.
4. High Outlet Pressure: Provides strong outlet pressure to meet the conveying needs of high-rise buildings and long-distance construction projects.

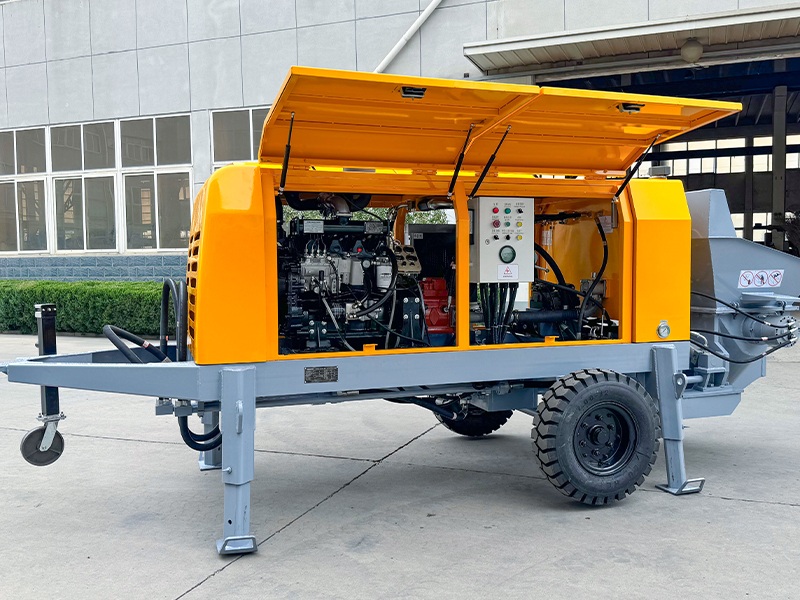

5. Air-Cooled Hydraulic Oil Cooling System: Adopts an advanced air-cooling heat dissipation system, eliminating the need for a water source and making operation easier.
The Specification Of The Concrete Pump
| Parameter | Unit | HBT40-13-60 |
| Maximum theoretical concrete output (L./H.) | m3/h | 42/23 |
| Maximum concrete pumping pressure (H. /L.) | MPa | 13/6.3 |
| Maximum delivering distance (vertical / horizontal) | m | 180/550 |
| Concrete valve type | S Valve | |
| Concrete cylinder diameter × stroke length | mm | Ф160×1000 |
| Hopper capacity × hopper height | L×mm | 400×1100 |
| Maximum aggregate diameter | mm | Pebbles : 45 |
| Gravel : 40 | ||
| Outlet inner diameter | mm | Ф125 |
| Delivering pipe inner diameter | mm | Ф100-Ф125 |
| Lubrication system | Automatic greaser | |
| High-low pressure conversion | Yes | |
| Remote control | Wireless | |
| Diesel engine | 4105ZD | |
| Rated power | KW | 60 |
| Rated speed | r/min | 1800 |
| Rated fuel consumption | L/h | 10 |
| Hydraulic system | Open loop | |
| Pumping system pressure | MPa | 32 |
| Stirring system pressure | MPa | 12 |
| Hydraulic tank capacity | L | 180 |
| Length × width × height | mm | 4300×1670×1680 |
| Main weight | Kg | 3100 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
LTMG Hot Selling Products
FAQ
Q: Do you have after-sale service?
A: Yes, LTMG provides our customers with good and comprehensive after-sale service, handling the customers complaint and solve problem for customers.
Q: Can we customize the machine to fit our unique requirements, and even incorporate our logo?
A: Certainly, our machines are adaptable to your distinct specifications, and we provide the choice to integrate your logo.
Q: Why Choose Us?
A: As a manufacturer, LTMG Idustry is not only committed to providing high-quality products and performance, as well as competitive prices, but also to timely delivery and 24-hour after-sales service.
Q: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
