In construction projects, understanding the types of excavators is essential before selecting the right crawler excavator. Selection is not determined by a single parameter. It requires a comprehensive evaluation of project scale, working intensity, and operational efficiency. Different machine sizes vary significantly in stability, digging capacity, and continuous working performance, which directly impacts construction results and cost efficiency.

Based on real-world engineering applications, LTMG classifies crawler excavators into four main tonnage categories, covering everything from compact models to large construction machines, helping users match the right equipment more intuitively.

Core Technical Parameters of a Crawler Excavator

When selecting a crawler excavator machine, tonnage classification is determined by several key technical parameters. These factors directly influence performance, efficiency, and application range.

Operating Weight

Operating weight refers to the total weight of the excavator in standard working condition. It determines machine stability and load capacity. In general, the higher the operating weight, the more stable the excavator performs under heavy-duty conditions.

Engine Power

Engine power defines the energy output of the excavator’s power system, usually measured in kW or HP. It directly affects working efficiency under load and determines whether the machine can maintain stable performance during long-hour operations.

Bucket Capacity

Bucket capacity refers to the volume of material the excavator bucket can handle in a single cycle, measured in cubic meters (m³). It is one of the most important indicators of productivity in excavator specifications. Larger buckets increase efficiency but require stronger structural support and engine power.

Specification	1.5-7.5 Ton Crawler Excavator	23-38 Ton Crawler Excavator
Operating Weight	1,500 kg-7500kg	23000kg-38,000 kg
Bucket Capacity	0.025 m³-0.28m³	1.1m³–1.9 m³
Rated Power / Speed	10.2 kW / 2500 rpm-42.2 kW / 2000 rpm	124kW / 2050 rpm - 219 kW / 1900 rpm

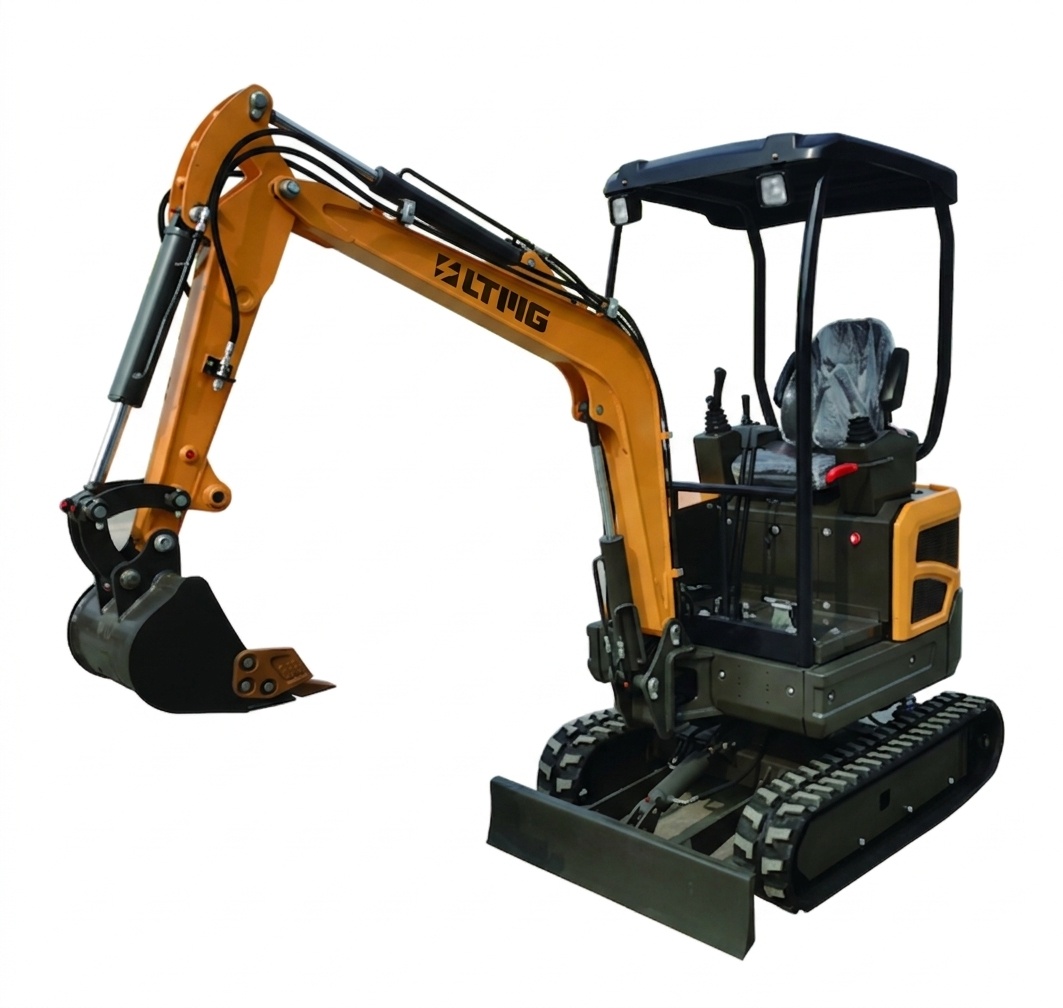

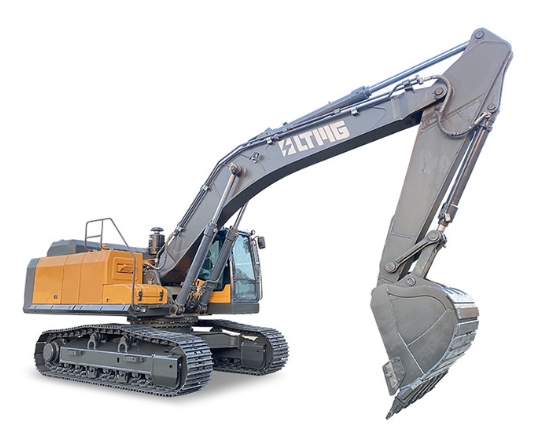

Product Image

From the parameter comparison, it is clear that different crawler excavator sizes are not simply a numerical increase, but a configuration matched to different working demands.

• Operating weight is positively correlated with bucket capacity.

As tonnage increases, structural strength and stability improve, allowing larger bucket capacity and higher productivity per cycle.

• Engine power increases with tonnage, while engine speed decreases.

Small excavators typically use high-speed, low-power engines (e.g. 2500 rpm) for faster response and flexibility, suitable for light and precision work.

Large excavators adopt low-speed, high-torque engines (e.g. 1900 rpm) to ensure stable output for heavy-duty and continuous operation.

Crawler Excavator Types and Application Scenarios

Mini Crawler Excavator (0.8–3.5T)

A mini crawler excavator is mainly used in confined spaces and light-duty excavation tasks where manual labor is inefficient or impossible.It is also widely used in crawl space excavation, where working space is extremely limited and precision digging is required.

Typical applications:

• Narrow or restricted construction sites
• Shallow digging near existing structures
• Garden, farm, and landscaping work

Limitations:

• Lower efficiency in dense soil
• Not suitable for large-scale excavation or continuous loading

Therefore, this tonnage range is not a general-purpose machine, but a tool-type equipment designed to replace manual labor or small machinery in restricted working conditions.

It is commonly used for garden maintenance and farm or orchard operations.

At this stage, LTMG 0.8–3.5T models are positioned to ensure they can “access tight spaces and complete basic tasks efficiently.”

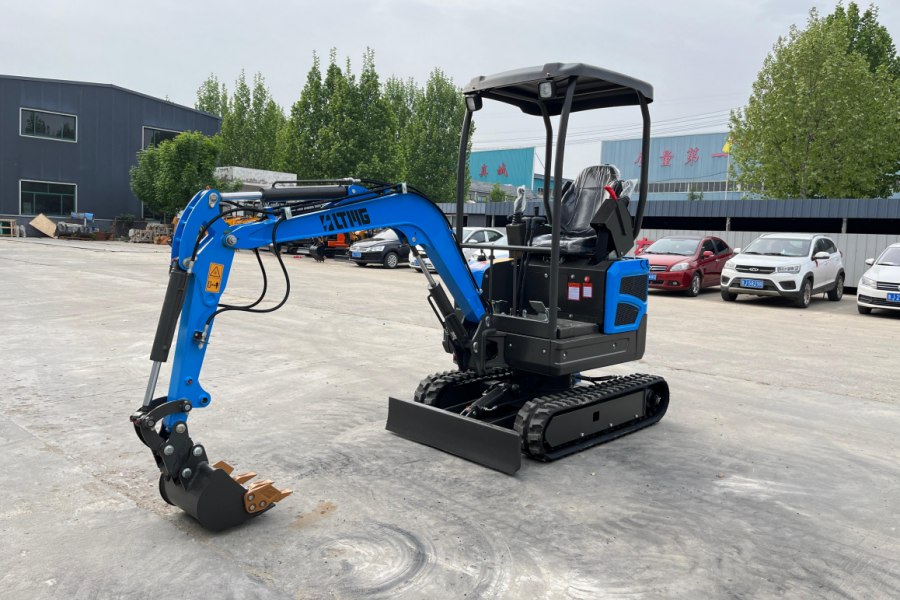

LTMG 1.5Ton Crawler Excavator

Small to Medium Crawler Excavator (6.5–13.5T)

This is the most commonly used category in the excavator machine market.

Typical applications:

• Foundation excavation
• Municipal pipeline construction
• Soil loading and backfilling cycles

Compared with mini models, this range supports continuous operation without frequent performance drops.

However, limitations appear in:

• Large-scale loading efficiency
• Deep excavation in high-density soil

It is commonly used for building foundations, municipal engineering, and general earthmoving work, making it one of the most widely used main construction machine types.

For LTMG 6.5T–13.5T models, the design priority in this range is stable output rather than maximum single-cycle performance.

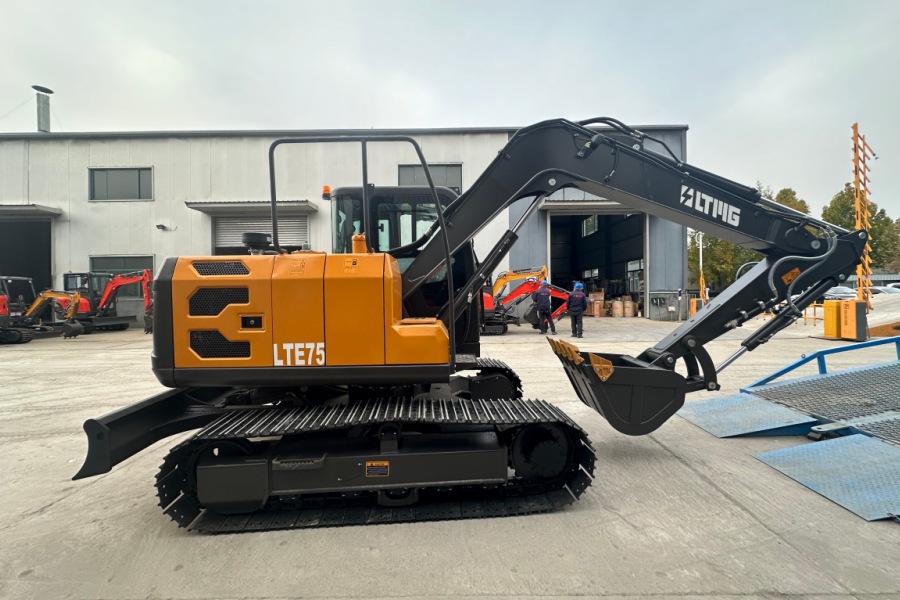

7.5 ton Crawler Excavator

Medium Crawler Excavator (15–23.5T)

At this stage, the machine transitions from a general-purpose tool to a production-focused excavator machine.

Typical applications:

• Large-volume earthmoving
• Industrial construction projects
• Long-term continuous excavation

The main differences compared with small and medium-sized equipment are:

• Smaller excavators are more likely to experience efficiency fluctuations during continuous operation
• This tonnage range can maintain stable cycle efficiency

However, its limitations include:

• Less flexibility for highly precise operations
• Reduced maneuverability in confined spaces

Therefore, the essence of this class is exchanging flexibility for large-scale productivity.

It is commonly used in large foundation construction, industrial projects, and continuous earthmoving tasks, making it suitable for medium-to-high intensity operations.

LTMG 15T–23.5T models are designed to prioritize stable output rather than multi-purpose adaptability.

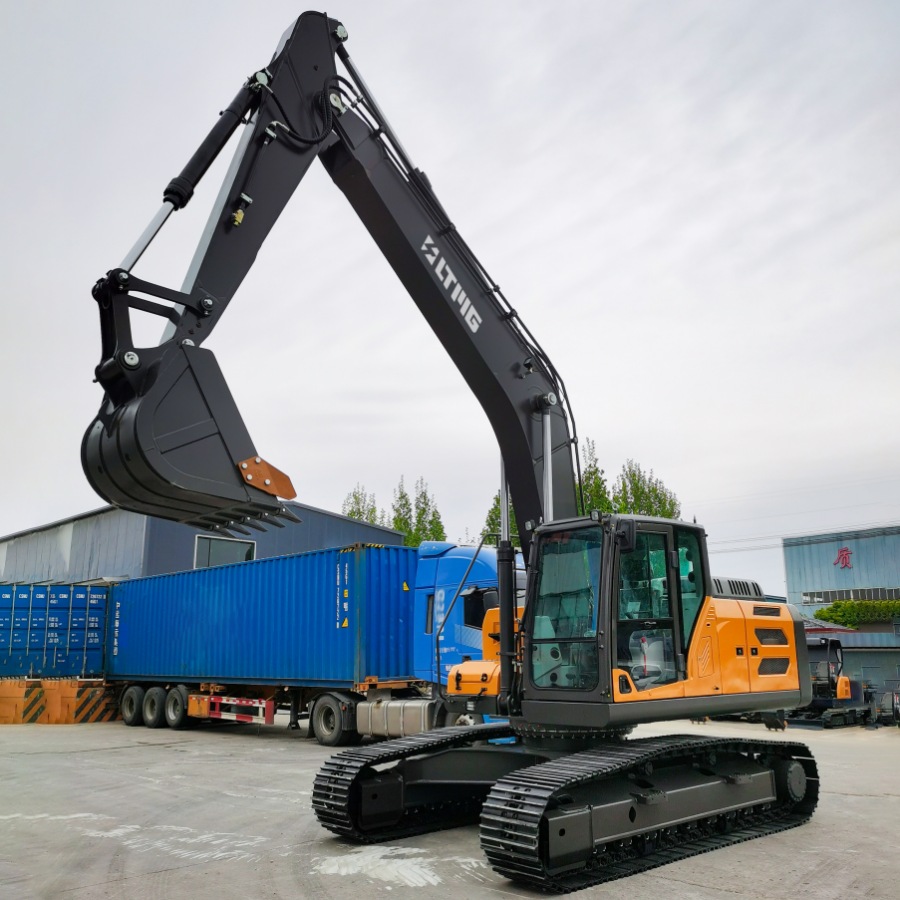

23 ton Crawler Excavator

Large Crawler Excavator (24 Ton and Above)

A large crawler excavator is designed for maximum earthmoving productivity.

Typical applications:

• Mining operations
• Large infrastructure projects
• Heavy-duty continuous excavation

Advantages:

• Extremely high digging capacity
• Long-duration stable operation
• High productivity per cycle

Limitations:

• Requires larger working space
• Lower mobility
• Higher site preparation requirements

Therefore, the essence of this tonnage range is to trade flexibility for sustained productivity.

It is commonly used in mining, large-scale earthmoving, and heavy-duty continuous operation scenarios, emphasizing high productivity and long-term stable output.

LTMG 24Ton and above models are mainly designed for heavy-duty projects with continuous production demands.

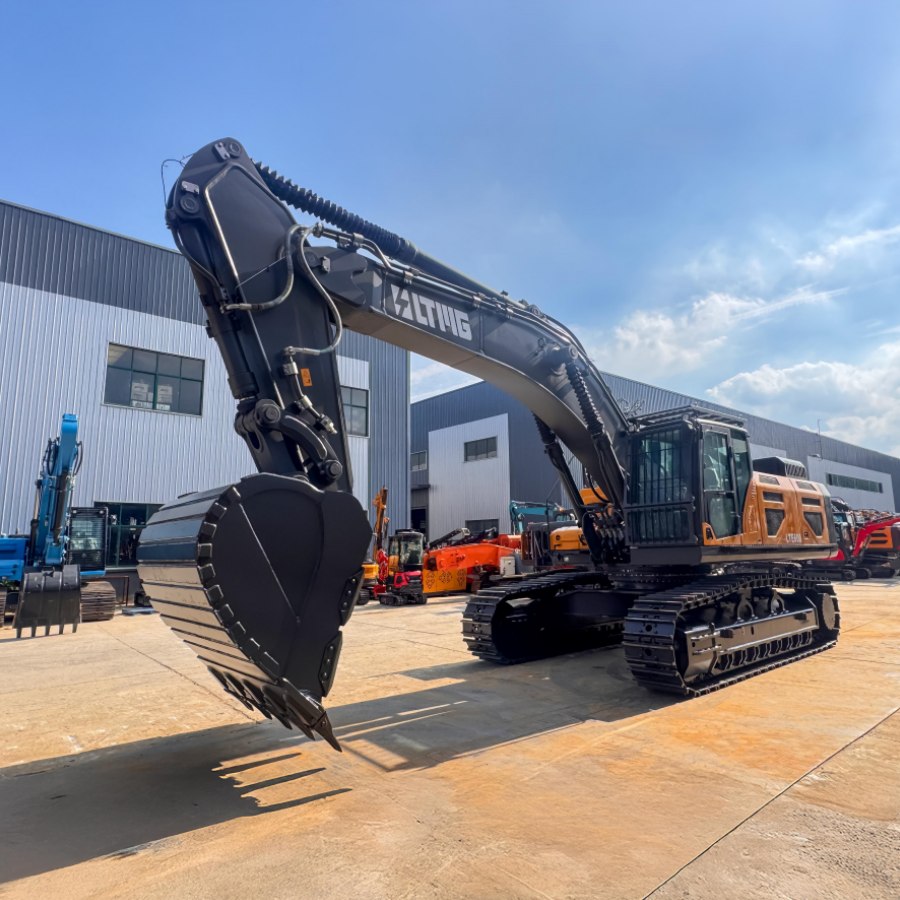

 60 ton Crawler Excavator

Conclusion

LTMG offers a full range of crawler excavators, from 0.8 tons to 24+ tons, covering all major construction scenarios. Whether you need a mini crawler excavator for tight spaces or a large model for heavy-duty earthmoving, selecting the correct crawler excavator size ensures better efficiency, stability, and cost control.

For detailed specifications or model recommendations, LTMG can provide tailored solutions based on your project requirements.

Frequently Asked Questions

What is a crawler in an excavator?

A crawler refers to the undercarriage track system of an excavator. Compared with wheels, a crawler excavator has a larger ground contact area, improving stability and traction on soft or uneven terrain such as mud, sand, and gravel.

How much does a crawler excavator cost?

The cost of a crawler excavator depends on tonnage, configuration, engine system, and hydraulic components. Generally, smaller models are more affordable, while larger machines with higher power systems are significantly more expensive.

What is the difference between a wheel excavator and a crawler excavator?

A wheel excavator offers faster mobility and is suitable for urban road construction and frequent relocation. In contrast, a crawler excavator machine provides better stability and is ideal for construction sites, earthmoving, and uneven terrain.
